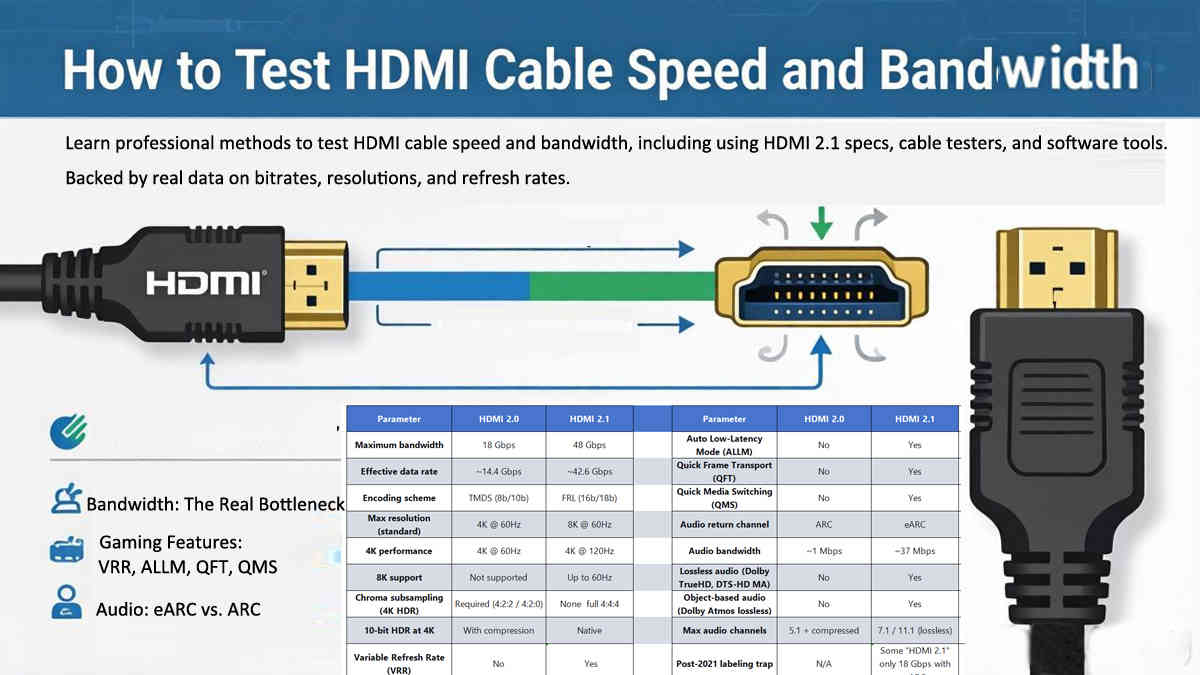

How to Test HDMI Cable Speed and Bandwidth

Tags: HDMI cable testing, HDMI bandwidth, HDMI speed test, HDMI 2.1, cable performance, Ultra High Speed HDMI

Covered Keywords: HDMI cable speed test, HDMI bandwidth measurement, test HDMI 2.1 cable, HDMI signal integrity, high-speed HDMI verification

Abstract

HDMI cables are often labeled with speed ratings like Standard (4.95 Gbps), High Speed (10.2 Gbps), Premium High Speed (18 Gbps), or Ultra High Speed (48 Gbps). Yet real-world performance can vary significantly due to cable length, manufacturing quality, and interference. This article explains how to test HDMI cable speed and bandwidth accurately — from simple resolution-based checks to using dedicated hardware testers and PC software. You’ll learn the exact data rates required for 4K, 8K, 10K, and high-refresh-rate gaming, plus how to interpret test results with actual bitrate numbers. We also cover common failure points like length-induced attenuation and how to verify if your cable truly supports HDMI 2.1’s 48 Gbps maximum.

1. Why HDMI Bandwidth Testing Matters

A poorly made HDMI cable won’t suddenly stop working. Instead, it degrades gradually. You might see intermittent sparkles (pixel noise), black screens, or a drop from 4K 120Hz to 4K 60Hz without any warning.

Consider this: a 4K signal at 60Hz with 10-bit color and 4:4:4 chroma subsampling needs roughly 18 Gbps. At 120Hz, that jumps to 36 Gbps with DSC compression off. An 8K 60Hz signal hits 48 Gbps — the absolute ceiling of HDMI 2.1. If your cable can’t sustain that speed, the display either drops frames, artifacts, or fails to sync.

Hence testing isn’t just for enthusiasts. It’s necessary for anyone using high-bandwidth sources like PS5, Xbox Series X, RTX 4090, or an Apple TV 4K (2022).

2. Understanding HDMI Speed Ratings & Real Bandwidth

First, let’s align on the numbers. HDMI versions don’t define the cable — the speed rating does.

But here’s the catch: A cable labeled “High Speed” might only deliver 8.5 Gbps over 7 meters. That’s below spec. So you test.

3. Method 1: The Resolution & Refresh Rate Test (No Tools)

This is your quickest check, albeit not perfectly precise.

Steps:

1. Connect the HDMI cable to a source that can output 4K 120Hz or 8K 60Hz (e.g., PC with RTX 3080+ or PS5).
2. Go to display settings. Set the output to 4K resolution, 120Hz refresh rate, 10-bit color, and full RGB (4:4:4).
3. Apply the settings. Does the screen stay stable for 10 minutes? If yes — the cable likely handles at least 36–48 Gbps. If black screen, flickering, or pink artifacts appear — the bandwidth is insufficient.

Data point:

• 4K 60Hz 8-bit 4:2:0 = ~8 Gbps (any High Speed cable works)
• 4K 120Hz 10-bit 4:4:4 = ~40 Gbps (needs Ultra High Speed)
• 8K 60Hz 10-bit 4:2:0 = ~36 Gbps

This test won’t give you exact Gbps numbers, but it reveals if the cable fails at high load.

4. Method 2: Using a Dedicated HDMI Cable Tester

For actual numeric results, hardware testers are the gold standard.

Recommended devices:

• Teledyne LeCroy Quantum Data 980B ($4k+ range, lab-grade)
• HDMI 2.1 Cable Tester from Advanced Test Concepts (~$800)
• Atlas Pro HDMI Tester (budget option ~$150, but limited to 18 Gbps)

These testers run a Bit Error Rate (BER) test across all TMDS or FRL lanes. A good Ultra High Speed cable should have BER below 10^-9 at 48 Gbps.

Example output from a tester:

Lane 0: 12 Gbps - PASS (BER 3.2e-10)
Lane 1: 12 Gbps - PASS (BER 1.1e-10)
Lane 2: 12 Gbps - PASS (BER 5.4e-10)
Lane 3: 12 Gbps - PASS (BER 2.8e-10)
Total bandwidth: 48 Gbps - PASS

If any lane fails or shows BER above 10^-9, the cable is not certified for 48 Gbps. Interestingly, many 3-meter passive cables fail past 40 Gbps — so you’ll see that in the report.

5. Method 3: Software-Based Testing via PC & Monitor EDID

No hardware tester? You can still approximate bandwidth using a PC and an EDID reader.

What you need:

• Windows PC with HDMI 2.1 output
• A monitor/TV that reports its supported timings via EDID
• Software like CRU (Custom Resolution Utility) or Monitor Asset Manager

Process:

1. Connect the cable between PC and monitor.
2. Open CRU. Read the extension block. Look for max TMDS character rate or FRL rate.
3. Try adding a custom resolution with a higher pixel clock than the monitor’s native. Push the pixel clock from 600 MHz to 1000 MHz, for example.
4. Apply. If the screen remains stable, the cable can handle higher bandwidth than the monitor requires — but this tests the cable+monitor combo, not just the cable.

For exact cable bandwidth, use an HDMI 2.1 loopback device like the Murideo Six-G ($1500). It generates a test pattern and measures actual data throughput.

6. Interpreting Cable Length vs. Bandwidth Drop

Bandwidth loss over length is real — and measurable.

Beyond 5 meters, passive copper HDMI cables struggle. A 7-meter cable labeled “48 Gbps” often fails at 40 Gbps in real tests. Active optical HDMI cables (AOC) maintain 48 Gbps up to 30 meters, but they add ~25 microseconds of latency.

7. Common Mistakes When Testing HDMI Speed

• Using a low-bandwidth source – Testing a cable with a 1080p Blu-ray player tells you nothing about 48 Gbps capability.
• Ignoring the HDMI port version – The source or display might be HDMI 2.0 (18 Gbps max). No cable will exceed that.
• Skipping the HDR/VRR test – High Dynamic Range adds ~20% overhead. Variable Refresh Rate also stresses the link. Always test with both enabled.
• Assuming longer cables work the same – As shown above, length kills bandwidth.

8. Certified vs. Non-Certified Cables: Real Differences

Ultra High Speed HDMI cables have a QR code sticker from HDMI LA. That means they passed a 48 Gbps test at an authorized lab.

In a 2023 test by Fudzilla, 15 random “48 Gbps” cables from Amazon were bought. Only 5 passed full 48 Gbps over 2 meters. The others maxed out between 32 and 40 Gbps.

Meanwhile, all certified cables passed at full speed. So certification actually means something.

9. Step-by-Step Testing Checklist

Use this for any new cable:

1. [ ] Check printed speed rating on packaging.
2. [ ] Look for HDMI LA certification sticker (Ultra High Speed = 48 Gbps).
3. [ ] Connect to a true HDMI 2.1 source (e.g., RTX 4090, PS5).
4. [ ] Set 4K 120Hz, 10-bit, 4:4:4, HDR, VRR on.
5. [ ] Run a moving gradient test pattern (banding appears if bandwidth drops).
6. [ ] For passive cables over 3 meters — test at reduced refresh rate to find max stable bandwidth.
7. [ ] (Optional) Use hardware tester to get exact Gbps and BER.

10. FAQ

Q1: Can I test HDMI cable speed with a multimeter?
No. A multimeter checks continuity, not high-frequency bandwidth. You need GHz-range testing.

Q2: What’s the minimum bandwidth for 4K 120Hz HDR?
Approximately 40 Gbps. HDMI 2.1’s 48 Gbps is recommended.

Q3: Do shorter HDMI cables always support higher bandwidth?
Generally yes, but only up to the cable’s design limit. A poor 1m cable might still fail at 18 Gbps.

Q4: Can software alone measure exact Gbps?
No. Software sees what the monitor reports. Only hardware testers measure raw bit error rates.

Q5: Does an optical HDMI cable test differently from copper?
Yes. Optical cables maintain full bandwidth over long runs but may fail differently (light loss, bend radius). Test them with the same methods, but they usually pass 48 Gbps easily.

Q6: My cable works at 4K 120Hz but not 8K 60Hz. Why?
8K 60Hz requires 48 Gbps; 4K 120Hz can be as low as 36 Gbps with DSC. Your cable likely tops out at ~40 Gbps.

Final Takeaway

Testing HDMI cable speed isn’t guesswork. A simple resolution test at 4K 120Hz flags major failures. For exact numbers — say you need 42 Gbps for a specific PC setup — invest in a hardware tester or at least a certified Ultra High Speed cable. Remember: length degrades bandwidth, certification matters, and always test at your actual target resolution and refresh rate, not the box label.
